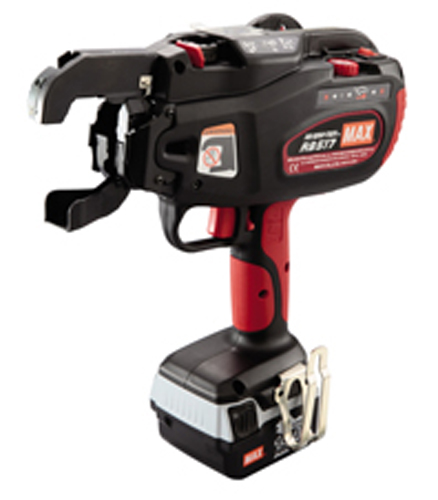

Rebar Tying Tool

Product Information

Item SKU

MAX USA RB517

Item Name

Rebar Tying Tool

Additional Information

Features

Ties approx. 1,800 ties per charge, which is 5 times more than Ni-Cd model
Brushless electric motor offers higher efficiency and longer lifetime
Light weight & compact body
One hand operation
Ties up TP #7 x #8 rebars
Auto shutoff features extends battery life
Reversible belt hook eliminates bulky holster and keeps tool handy and safe
Uses only MAX genuine TW897A and TW897A-PC wire.
Tool is better sealed to keep dirt and debris out of tool to extend tool life
MAX recommends daily blow out of tool with compressed air and has added blow out channels to ease cleaning

Specifications

WEIGHT	5.3 lbs (Battery included)
DIMENSIONS	12"(H) x 4-1/8"(W) x 12"(L)
TIES PER COIL	Approx. 90 ties (3 wraps)
TIES PER COIL	Approx. 75 tise (4 wraps)
TIES PER CHARGE	Approx. 1,800 ties (3 wraps) / charge
TIES PER CHARGE	Approx. 1,700 tise (4 wraps) / charge
WRAPS PER TIE	3 or 4 wraps/tie
RE-BAR SIZE	#5 x #5 to #7 x #8
TIE WIRE	TW897A (Regular Steel wire), TW897A-PC (Polyester-Coated wire)
ACCESSORIES	Extension bar (JE200)
