| Additional Information |
Features
- Stainless steel up to 25-gauge
- Compact and rapid nibbler for corrugated sheet metal
- 7.5-ft/min. cutting speed for excellent work progress
- Optimum ergonomics, including a motor housing that is up to 20 percent slimmer thanks to an extremely narrow drive head
- Cutting direction setting can be changed in increments up to 360 degrees using tool-free pivoting cutting head
- QuickIN rapid punch change system
- Rotating punch for increased tool life up to 30 percent
- Low operating costs due to long tool life of punch and die
- Chip protection mesh on vent slots
- Brief overlapping area up to 12-gauge
- 16-ft cable
Specifications
| Power Consumption: |
350 Watts |
| Power Output: |
210 Watts |
| SPM: |
1,800 |
| Cutting Speed: |
7.5-ft-min |
| Capacity in Steel (56,000 PSI): |
18-Gauge |
| Capacity in Steel (84,000 PSI): |
21-Gauge |
| Capacity in Steel (112,000 PSI): |
23-Gauge |
| Capacity in Non-Ferrous Metals (35,00 PSI): |
14-Gauge |
| Cutting Width: |
3/16-in |
| Immersion with Die: |
3/4-in |
| Radius of Smallest Curve (In/Out): |
9/16-in / 13/16-in |
| Power Cord: |
16-ft |
| Weight: |
3.8 lbs. |
Includes

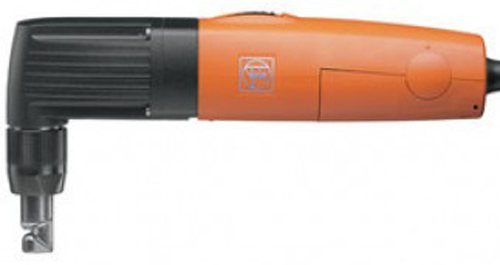

- 18-Gauge Sheet Metal Nibbler - BLK 1.3 CS
- Trapezoidal Sheet Metal Die - 3 01 09 170 00 1
- Corrugated Sheet Metal Die - 3 01 09 169 00 9
Contact us for warranty information |
